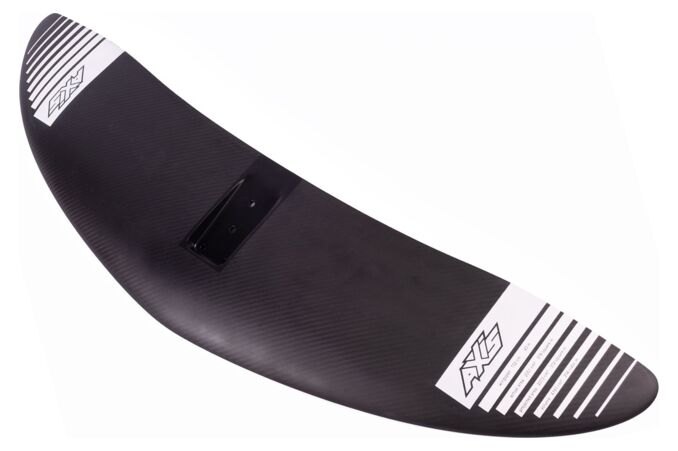

Axis S-Series 1020mm
Axis S-Series front wing, 2,051 cm² with a 102 cm span.
2018Specifications
| Area | 2,051 cm² |
|---|---|
| Span | 102 cm |
| Aspect ratio | 5.1 |
| Max chord (brand) | — |
| Mean chord (area ÷ span) | 201 mm |
| Max thickness (brand) | — |
| Year | 2018 |
| Price | €175 |
| Disciplines | Pump, Surf, wake, Wing |
For a 176 lb rider, 11 lb of gear included, in sea water
| Estimated take-off | 5 kn |
|---|---|
| Comfortable speed range | 6 to 7 kn |
| Best-glide speed | 8 kn |
| Stall speed | 5 kn |
| Carving index | 8.0/10 |
Compare with other front wings → Build a setup around this wing →
Other Axis S-Series sizes
- S-Series 680mm 1,120 cm²
- S-Series 900mm HA 1,277 cm²
- S-Series 750mm 1,359 cm²
- S-Series 820mm 1,528 cm²
- S-Series 920mm 1,852 cm²
